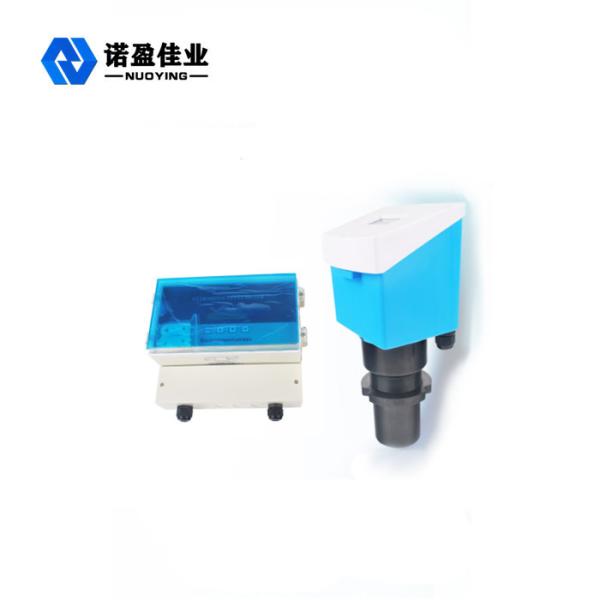

ABS Wireless Ultrasonic Level Transmitter 20m Blue HART Level Transmitter

Name: ABS Wireless Ultrasonic Level Transmitter 20m Blue HART Level Transmitter
Brand: NuoyingJiaye
Price: 135.0 USD

China ABS Wireless Ultrasonic Level Transmitter 20m Blue HART Level Transmitter factory

Brand Name : NuoyingJiaye

Model Number : NYCSUL-501-U

Certification : CE

Place of Origin : Xi'an

MOQ : 1pc

Price : $135.0~$175.0

Payment Terms : T/T

Supply Ability : 2500pcs per month

Packaging Details : 30*20*20 carton box

Material : ABS

Output signal : 4-20mA/HART

Supply power : 24VDC

Connection : Thread

Color : Blue

Accuracy : 0.5%

Range : 20m

Contact Now

Ultrasonic Level Sensor For Water Level With Meter

Ultrasonic Level Sensor For Water Level With Meter Description:

Ultrasonic Level Transmitter is a non-contact highly reliable and cost-effective material level measuring instrument which is easily installedand maintained. Itcan meet most of the material level measurement requirements without touching the medium. It can be used to measure the height of a variety of liquid and solid materials.

Ultrasonic Level Sensor For Water Level With Meter Parameters:

Measure range	5m, 10m, 15m, 20m
Accuracy	0.5%-1%
Resolution	3mm or 0.1% (Take the max.)
Display language	English
Analog output	Four wires 4-20mA/510Ω load \| Two wires 4-20mA/510Ω load
Relay out	AC250V/8A or DV30/5A
Power supply	24V DC or 220V AC±15% 50Hz
Ambient temperature	Display instrument -20℃-60℃, probe -20℃-80℃
Communication	RS485(standard) or RS232
Ingress protection	Display instrument IP65, probe IP68
Probe installation	Depend on range and probe type

Ultrasonic Level Sensor For Water Level With Meter Features:

1. Adopting advanced microprocessor

2. Unique echo processing technology

3. Built-in temperature compensation

4. Narrow beam, simple debugging and calibration

5. Economical type with plastic housing

6. With a menu in both English and Chinese, and an echo curve display.
