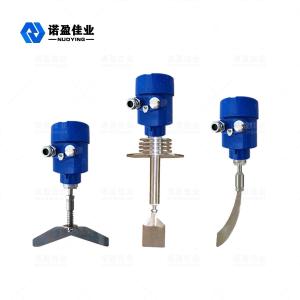

NYZX Rotary Paddle Level Switch
The NYZX series resistive material level switch is a device that uses permanent magnet motor to drive the blade to rotate. Before installation, please confirm whether the power supply voltage is consistent with the voltage on the label.When the detected material rises to the blade position, the blade rotation is blocked, and the resistance is transmitted to the detecting device in the junction box. Resistance spin material level switch should avoid installation in the feed mouth, when unavoidable can be added to protect the blade from material impact.The detecting device outputs a switch signal outward and cuts off the power to stop the blade from turning. Horizontal installation, junction box inlet should be vertical downward, cable fixing nut must be locked, if possible, can add rain cover, etc.When the material level drops, the blade resistance disappears, and the testing device returns to its original state by relying on the spring's pulling force, and adjusts the spring's pull force according to the specific gravity of different materials. Before installation, confirm horizontal installation or vertical installation.When the specific gravity is large, the spring tensile force is adjusted to be strong or strongest. On the contrary, adjust to weak or weakest.NYZX series resistive level switch is used to detect solid material (powder, particle) level control equipment, widely used in feed, food, pharmaceutical, chemical, plastic, construction, fertilizer and other industries.When installed horizontally, the blade is installed at an Angle of 10~20° to reduce the impact of materials.
NYZX Rotary Paddle Level Switch Technical Parameter
| Applications |
powder, small particle etc. level control |
| Bar material |
304(optional) |
| Probe length |
200mm (customizable as required) |
| Power supply |
24VDC (optional) |
| Process temperature |
Normal temperature (> +80 °C customizable) |
| Process pressure |
normal pressure |
| Process connection |
Bracket,thread, flange (optional) |
| Dielectric density |
N 0.4g/cm3 |
| Insulation impedance |
N 100MKQ (500VDC) |
| Dielectric strength |
1500V lmin |
| Contact capacity |
250V 5A (SPDT) |
| Moment |
10kg*m (lN*m) |
| Power |
3.0W |
| Electrical interface |
3/4 nNPT |
| Shell material |
Aluminium (optional) |
| Level of protection |
IP67 |
| Anti-hazard classification |
Exia II CT 6 (optional) |
※ Note: Products can be customized according to the specific requirements of users!
